Achieving Watertightness and Airtightness in Modern Curtain Wall Systems

The modern cityscape is defined by gleaming skyscrapers clad in glass and metal. These elegant facades, known as curtain walls, are far more than just aesthetic elements; they are sophisticated environmental barriers. Two of their most critical performance attributes are watertightness  (resistance to water penetration) and airtightness (resistance to air leakage). Achieving these is not a matter of chance but the result of meticulous engineering, precise manufacturing, and expert installation. This article explores the fundamental principles and techniques used to ensure a building remains weatherproof and energy-efficient.

The Critical Importance of Performance

A failure in either water or air containment can have severe consequences:

· Water Infiltration: Leads to interior damage, mold growth, corrosion of structural elements, and poor indoor air quality.

· Air Leakage: Results in increased energy costs for heating and cooling, drafts discomfort for occupants, and allows dust, noise, and pollutants to enter the building.

Therefore, the design of a curtain wall system is fundamentally centered on creating a continuous, high-performance barrier against these elements.

1. Achieving Watertightness: The "Drained and Pressurized" Approach

The most advanced and reliable method for ensuring watertightness is the "Pressure-Equalized Rainscreen Principle" (PER). This is a multi-line defense strategy that manages water rather than attempting to create a perfect, single seal.

The system can be broken down into three key zones:

a) The Outer Rainscreen (First Line of Defense):This is the exterior face of the curtain wall—the glass panels and metal plates. Its primary job is to deflect the majority of wind-driven rain. The joints between these components are designed with open or protected gaps to allow water to enter a designated cavity. Crucially, it is not sealed airtight.

b) The Pressure-Equalization Chamber (The "Cavity"):

Behind the rainscreen lies a continuous, compartmentalized cavity. This is the heart of the PER system. Weep holes (small openings) at the bottom of the system allow any water that penetrates the first line to drain safely back to the exterior.The key innovation is pressure equalization. Vents or baffles are designed into the system to allow air from the outside to flow into this cavity. The goal is to equalize the air pressure within the cavity to the pressure outside the building. When the pressures are equal, the driving force (wind pressure) that pushes water through the outer seal is eliminated. Water is no longer forced inward and can only drain downward by gravity.

c) The Inner Air Barrier (The Final Seal):The innermost line of defense is a continuous, robust, and fully sealed barrier. This primary air seal, often made of high-performance gaskets or wet-applied sealants, is protected by the pressure-equalized cavity in front of it. Its job is to stop any stray moisture vapor and, just as importantly, to provide the main line of airtightness.

This three-stage approach—deflect, manage/drain, and seal—creates a highly resilient system that can handle extreme weather conditions.

2. Achieving Airtightness: The Continuous Barrier Concept

While watertightness manages bulk water, airtightness controls the flow of air. The strategy here is simpler in concept but requires extreme precision in execution: create a continuous, unbroken air barrier across the entire building envelope.

Key components and practices include:

a) Gaskets and Seals:High-quality EPDM or silicone gaskets are the workhorses of airtightness. They are used in:

· Frame-to-Glass Seals: Compressible gaskets that hold the glass in place and seal the perimeter.

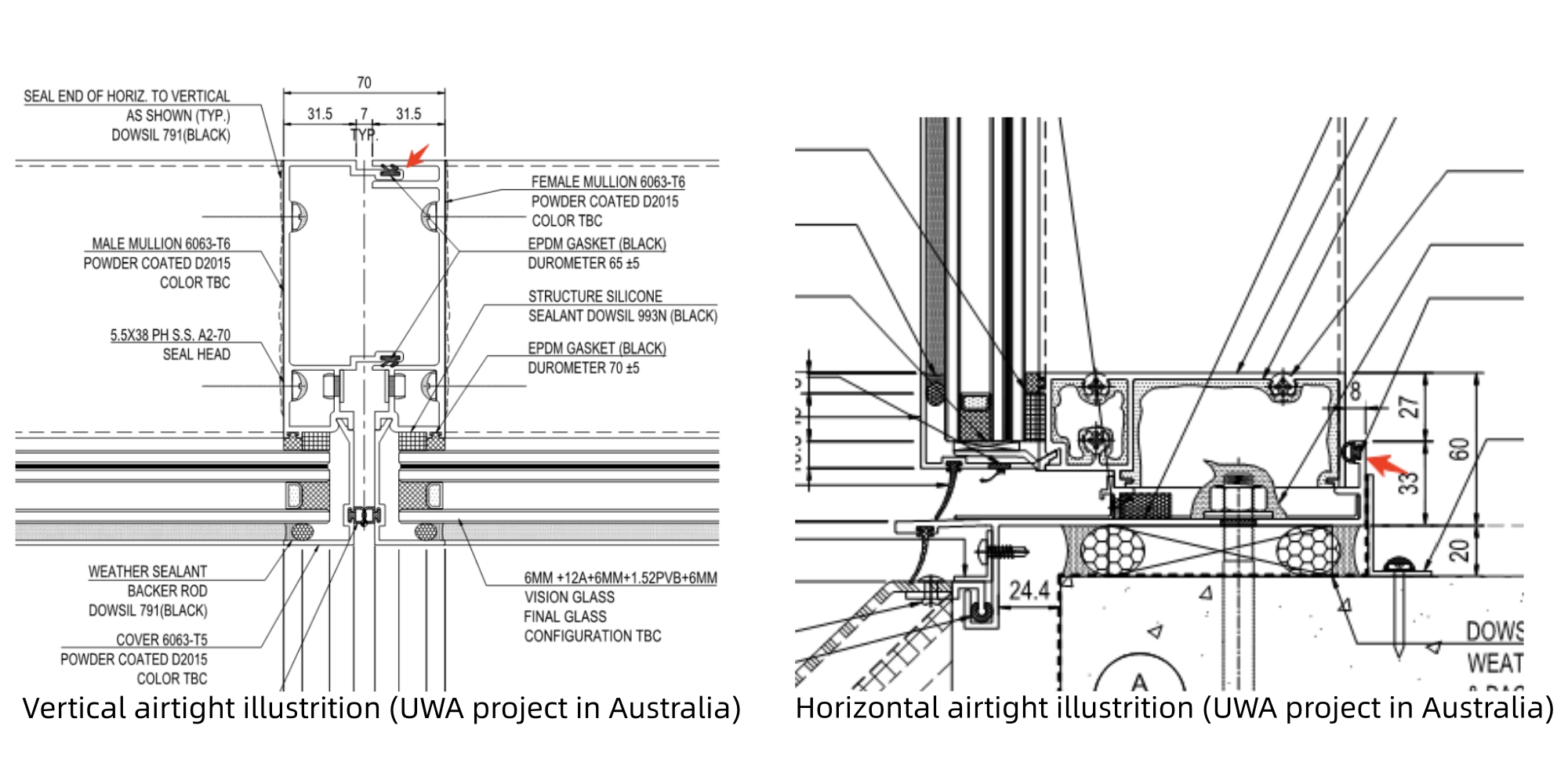

· Frame-to-Frame Seals: Gaskets are used at the joints between horizontal (transom) and vertical (mullion) frame members to ensure the entire grid is sealed.These seals must maintain their compression and elasticity over decades of thermal expansion, wind sway, and UV exposure.

b) Air Barriers at Interfaces:The curtain wall does not exist in isolation. The most common points of failure are where it meets other building elements, such as the concrete slab edge, adjacent walls, or the roof. Airtightness is achieved here using:

· Perimeter Sealants: High-performance silicone sealants are applied to bridge the gap between the curtain wall frame and the building structure.

· Flexible Air Barrier Membranes: These are often used to tie the curtain wall's air barrier into the building's primary air barrier system, creating a seamless transition.

c) Precision Engineering and Workmanship:Airtightness is designed on the drawing board but is realized on the construction site. Factors include:

· Tolerances: Frame members must be manufactured and assembled with tight tolerances to ensure gaskets compress properly.

· Joint Design: Connections must be designed to be sealed effectively, avoiding complex geometries that are difficult to seal.

· Quality Control: Careful installation and inspection are paramount. A single pinched gasket or missed sealant joint can compromise the entire system's performance.

Testing and Validation: Putting Theory into Practice

Before a curtain wall system is approved for production, it must undergo rigorous physical testing. A full-scale mock-up is built in a laboratory and subjected to simulated weather conditions in a test chamber.

· Water Penetration Test (ASTM E1105): The mock-up is sprayed with water at a specific rate while a fan creates a negative air pressure differential across it. The system must not allow any uncontrolled water penetration.

· Air Infiltration Test (ASTM E783): The mock-up is pressurized to measure the amount of air that leaks through it at various pressure differences. The result must be below the project's specified maximum allowable leakage rate.

· Structural Performance Test (ASTM E330): The mock-up is subjected to positive and negative wind loads to ensure it can deflect without losing its water and air seals.

These tests validate the design principles and provide confidence that the system will perform as intended in the real world.

Conclusion

The watertight and airtight integrity of a modern curtain wall is a testament to sophisticated engineering. It relies on the intelligent Pressure-Equalized Rainscreen principle to manage water penetration and the meticulous implementation of a continuous air barrier to prevent energy loss. From the molecular structure of a silicone gasket to the macro-scale design of a pressure-equalized cavity, every detail contributes to creating a durable, comfortable, and sustainable building envelope that protects its occupants for the life of the structure.
