The Installation and Long-Term Maintenance of Large Decorative Fins in Modern Curtain Walls

The use of large-scale decorative fins has become a defining feature of contemporary architecture, adding depth, texture, and a striking aesthetic to building facades. Beyond their visual appeal, these elements can serve functional purposes such as sun-shading and improving aerodynamic performance. This article provides a technical overview of the critical considerations, installation methodologies, and essential maintenance protocols for these significant architectural features.

1. Introduction: What are Decorative Fins?

Decorative fins, also known as architectural blades or louvers, are prominent vertical or horizontal elements attached to the exterior of a building's primary weather barrier (the curtain wall). Unlike structural members, their primary role is aesthetic, though they are often designed to integrate with the building's performance. They are typically fabricated from lightweight, durable materials like aluminum alloy, stainless steel, fiber-reinforced polymer (FRP), or stone composite.

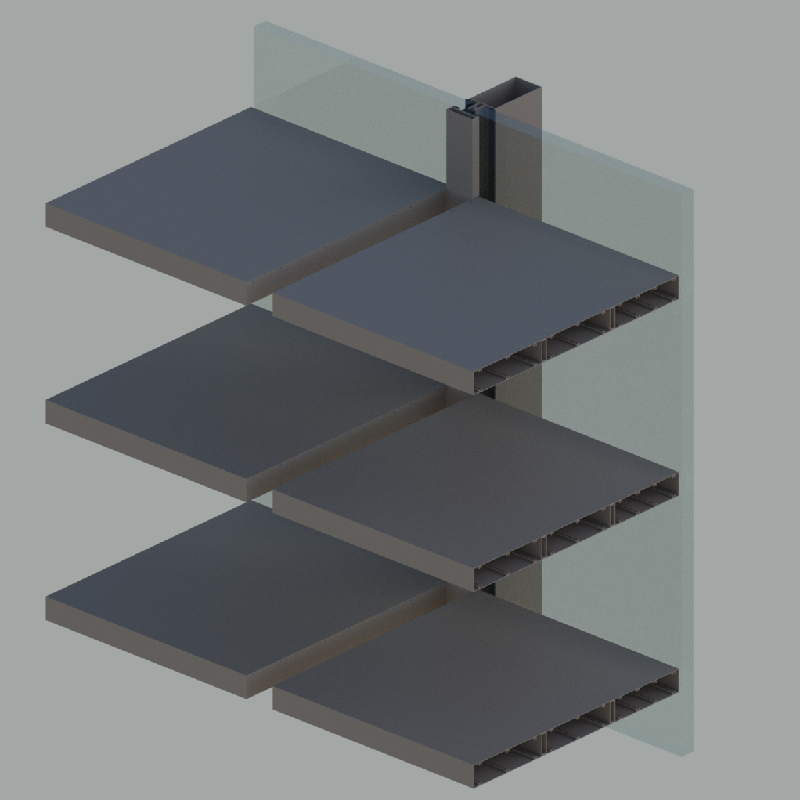

                    Veritcal sunshade fin

2. Key Design and Engineering Considerations

Before installation begins, thorough design and engineering are paramount to ensure safety, durability, and compliance.

· Load Analysis: Fins are subject to significant wind loads (both positive and negative pressure), seismic forces, and their own dead load. Finite Element Analysis (FEA) is used to model these forces and prevent excessive deflection or vibration.

· Thermal Movement: Materials expand and contract with temperature changes. Connection systems must accommodate this movement to avoid inducing stress into the fin or the main curtain wall structure.

· Material Selection: Aluminum is the most common choice due to its strength, lightness, corrosion resistance, and ease of extrusion into complex shapes. Coatings like Fluorocarbon Paint (PVDF) or Anodizing are essential for longevity.

· Connection Design: This is the most critical aspect. The connection must transfer all loads safely back to the primary building structure. Common systems include:

o Anchor Brackets: Robust, cast or machined aluminum/stainless steel brackets fixed to the curtain wall's primary mullions.

o Through-Bolt Connections: Provides a strong, direct connection but requires precise drilling.

o Sliding Connections: Allow for thermal expansion and contraction in one or more directions.

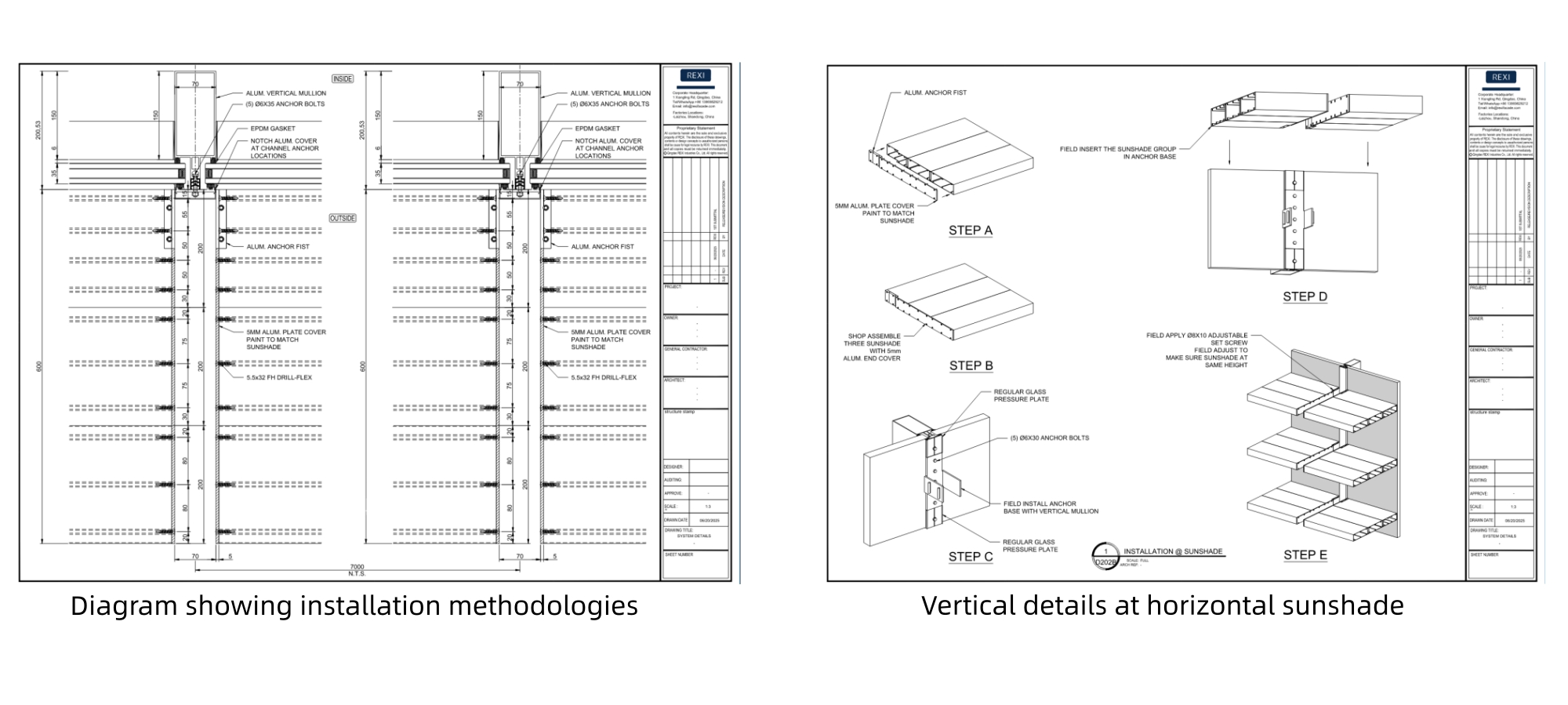

3. Installation Methodologies

The installation of large fins is a precision operation requiring careful planning and execution.

Phase 1: Pre-Installation

· Verification: Confirm all as-built dimensions on-site against shop drawings. Check the alignment and level of the primary support mullions.

· Lifting Plan: Large fins can be heavy and cumbersome. A detailed lifting plan using cranes, vacuum lifters, or gondolas must be established to ensure worker and material safety.

· Staging: Organize fins sequentially according to the installation sequence to minimize crane time and handling.

Phase 2: Installation Process

1. Bracket Installation: Install the primary anchor brackets onto the pre-identified mullions. Use a digital theodolite or laser level to ensure perfect vertical and horizontal alignment. Torque bolts to the manufacturer's specified values.

2. Fin Hoisting: Carefully lift the fin into position using soft slings or vacuum lifters to prevent damage to the finish.

3. Positioning and Temporary Fixing: Guide the fin into the brackets. Install temporary pins or bolts to hold it in place while final alignment checks are made.

4. Alignment and Levelling: Use laser levels and measuring tapes to check the fin's plumb, elevation, and projection from the facade. Shim as necessary within the allowed tolerances.

5. Final Fixing: Once perfectly aligned, install all permanent high-strength bolts. Crucially, do not over-tighten bolts, as this can distort the fin and impede thermal movement. Final torque settings should be applied consistently.

6. Sealing (if required): For fins that form part of the weather line, apply high-performance structural silicone or compression gaskets to create watertight seals at the connections.

4. Long-Term Inspection and Maintenance

A proactive maintenance regime is essential to ensure the long-term performance and safety of decorative fins.

A. Routine Inspections:

· Bi-Annual Visual Inspections: Conduct thorough visual inspections from ground level and via appointed access equipment every six months. Look for:

o Corrosion: White powder (aluminum oxidation) or rust stains on connections.

o Coating Failure: Cracking, flaking, or fading of the protective coating.

o Loosening: Visible movement, rattling sounds in wind, or loose fasteners.

o Damage: Dents, cracks, or deformation from impact or wind.

· Post-Extreme Event Inspections: After major windstorms, earthquakes, or impacts, a immediate and detailed inspection by a qualified professional is mandatory.

B. Periodic Hands-On Maintenance (Every 3-5 Years):

· Cleaning: Wash fins with a low-pressure water rinse and a neutral pH detergent. Avoid abrasive cleaners or high-pressure washers, which can damage coatings and seals.

· Retorquing Bolts: A critical task. Over time, thermal cycling and vibration can cause connections to loosen. A sample of critical connection bolts should be checked for torque value and retightened to the original specification if necessary.

· Sealant Inspection and Replacement: Check perimeter sealants for adhesion, cohesion, and elasticity. Replace any deteriorated sealant with a compatible, high-performance product.

C. Advanced Techniques:

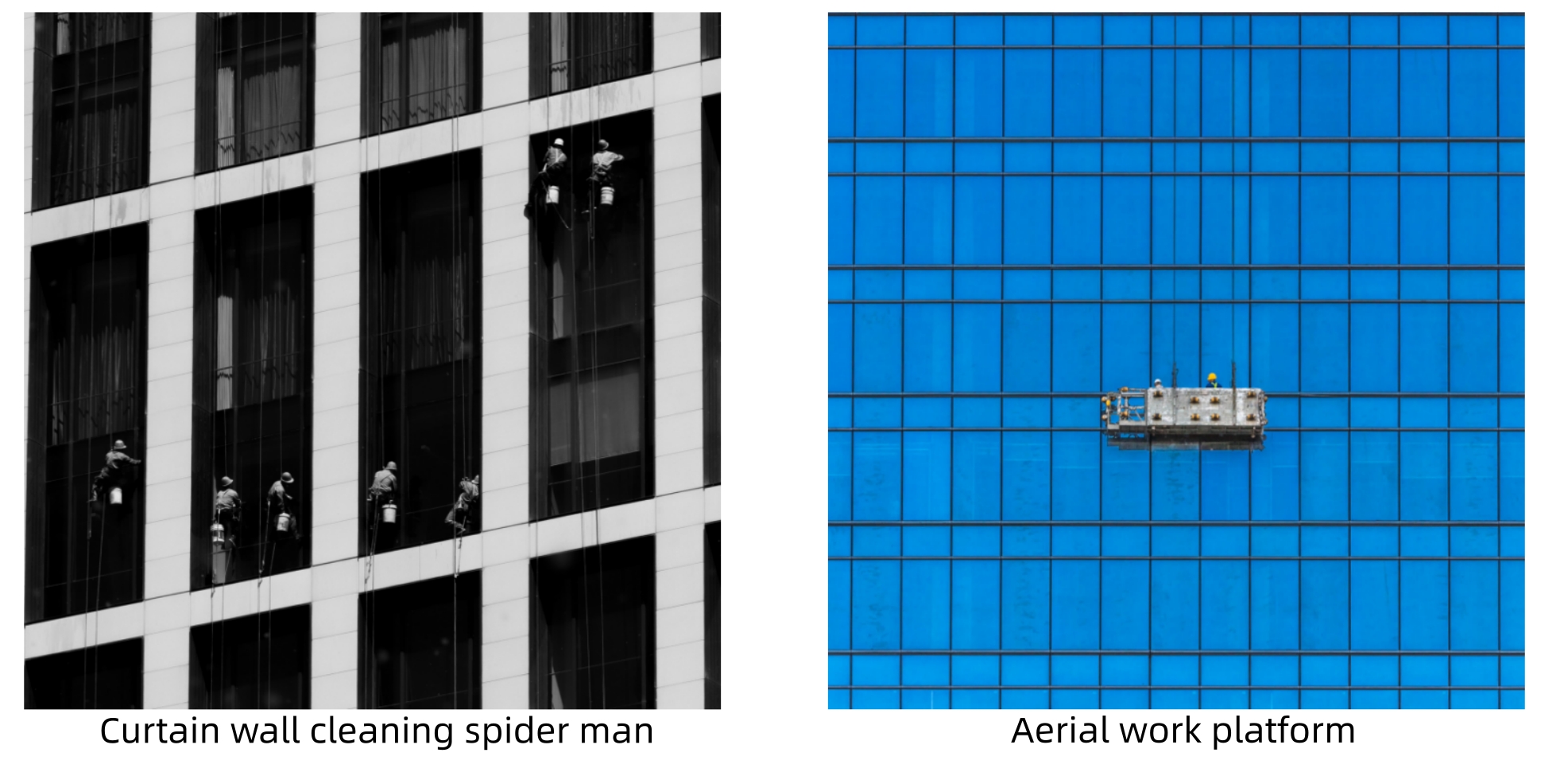

· Drone Inspections: Drones equipped with high-resolution cameras can provide close-up visuals of fins at height, reducing the need for extensive swing stage setup for initial assessments.

· Non-Destructive Testing (NDT): For critical connections in high-stress areas, techniques like ultrasonic testing can be used to check for hairline cracks in welds or bolts without disassembly.

5. Conclusion

Large decorative fins are a powerful architectural tool that, when properly engineered, installed, and maintained, can define a building's identity for decades. The key to their success lies in a meticulous approach from design through to installation, backed by a disciplined and proactive long-term maintenance strategy. Ignoring these protocols can lead to aesthetic degradation, water infiltration, and in worst-case scenarios, a critical safety hazard. Therefore, investing in quality throughout the lifecycle of these elements is not just a recommendation—it is a necessity.
